Solid State Relay Required Only 50uA Drive Current
Solid State Relay Required Only 50uA Drive Current
This circuit demands a control current that is 100 times smaller than that needed by a typical optically isolated solid state relays. It is ideal for battery-powered systems. Using a combination of a high current TRIAC and a very sensitive low current SCR, the circuit can control about 600 watts of power to load while providing full isolation and transient protection.

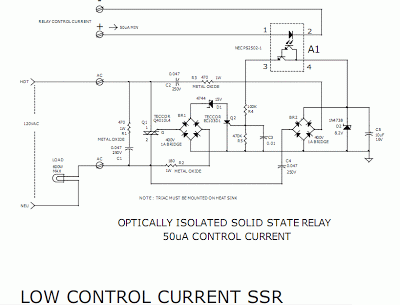

Solid State Relay Circuit diagram:
Solid State Relay Circuit diagram:
Source: Discover Circuits
