Digital Alarm Clock Using PIC
Digital Alarm Clock Using PIC
This project describes a digital clock with alarm function. It uses a PIC16F877 microcontroller to generate an accurate 1 sec delay with Timer0 using Roman’s zero error method. The time is displayed in large size font on a 4×20 character LCD that uses HD44780 display driver. You can synchronize the time with your computer time through a serial port.

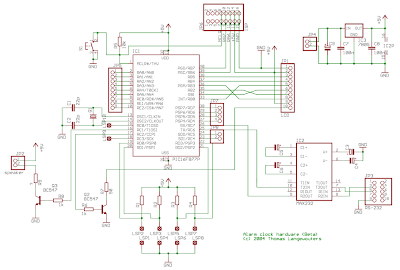

Digital Alarm Clock Using PIC Circuit Diagram
The required power is provided through a 9 V wall adapter which is used to obtain a regulated +5 V power supply using a LM7805 IC. The microcontroller runs with a 20 MHz external clock. The backlight of LCD is driven by a PWM output from the microcontroller so that the back light intensity can be varied. The full software written in JAL is available to download. Source Code.
Digital Alarm Clock Using PIC Circuit Diagram
